Tubular Heating Elements
Backer Cynebar Ohmic Tubular Heating Elements are proudly Australian-made in Brisbane, manufactured to ISO9001 certification standards from raw materials through to finished product. Our tubular heating elements deliver reliable, high-performance heating for a wide range of industrial applications, ensuring quality and consistency at every stage of production.
TUBULAR HEATING ELEMENTS
Why Choose Backer Cynebar Ohmic Tubular Heating Elements?
Australian Local Manufacturing
Produced in Brisbane, supporting local Australian industry and fast delivery.
ISO9001 certified processes guarantee quality from raw materials to finished product.
Versatile Configurations
Double-ended styles, flexible lead wire, and multiple termination options for easy installation. Made in 8mm and 11mm diameters and up to 5m in length.

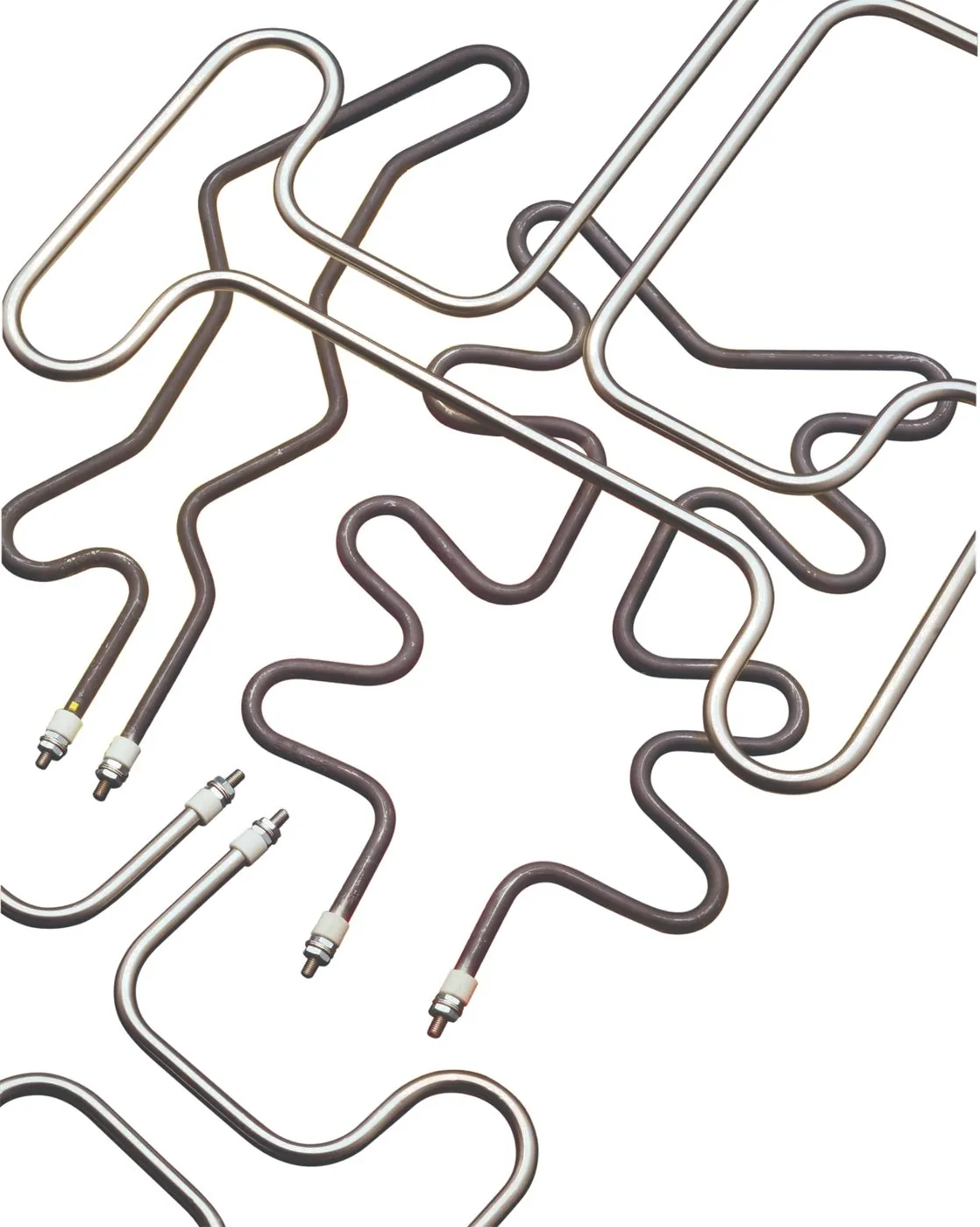

Over 80 standard bend formations for custom fit in any application.
Superior Performance
Precision-wound nickel-chromium resistance wire for even heat distribution and long service life.
Sheath materials: Incoloy 800, stainless steel 321, Titanium and Incoloy 825 for optimal performance in demanding environments.

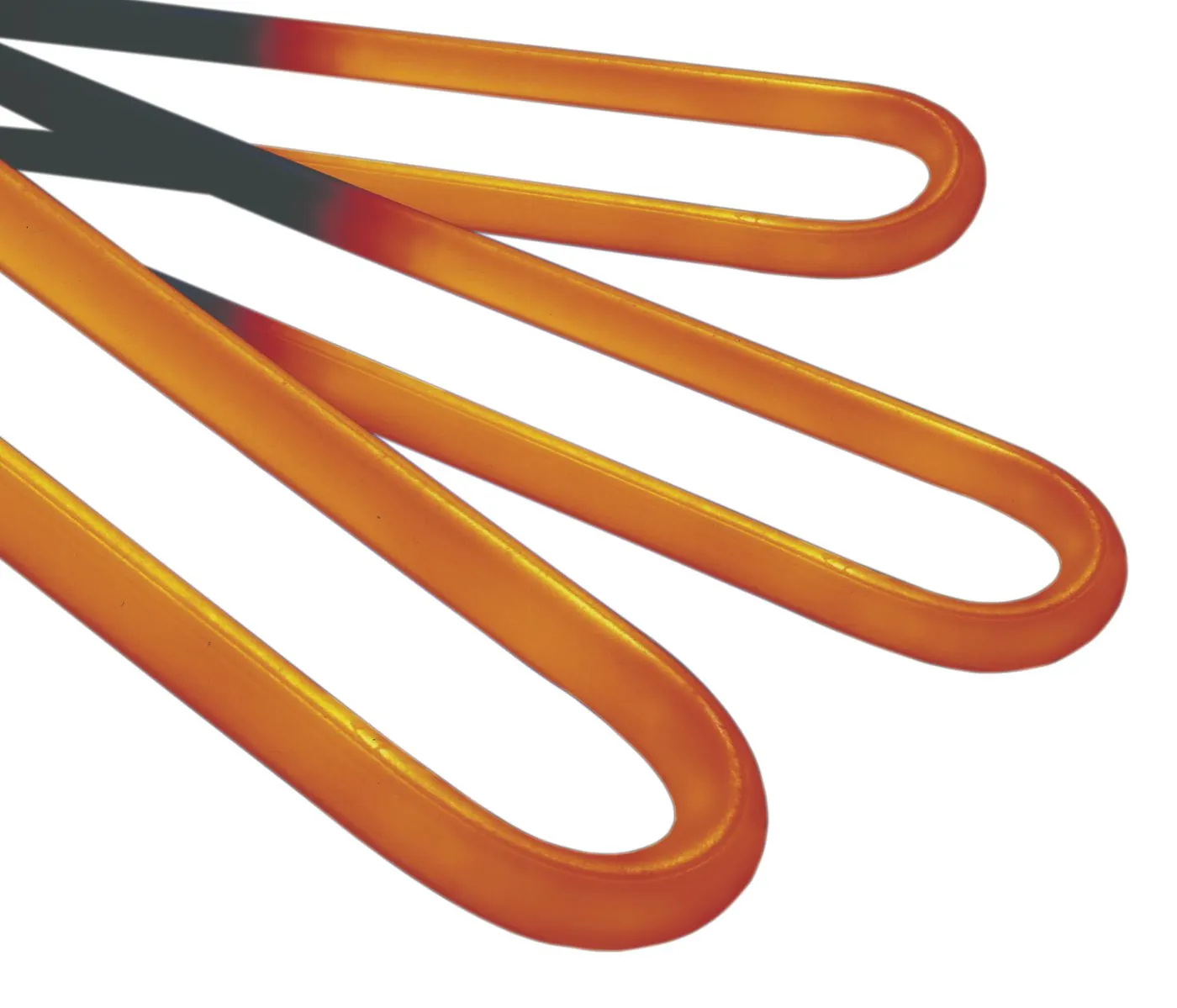

Watt densities up to 120 W/in² (18.6 W/cm²) and sheath temperatures up to 700°C.
Specialized Designs
FIREBAR® Elements: Flat geometry for higher power in compact spaces, improved heat transfer, and reduced coking in immersion applications.

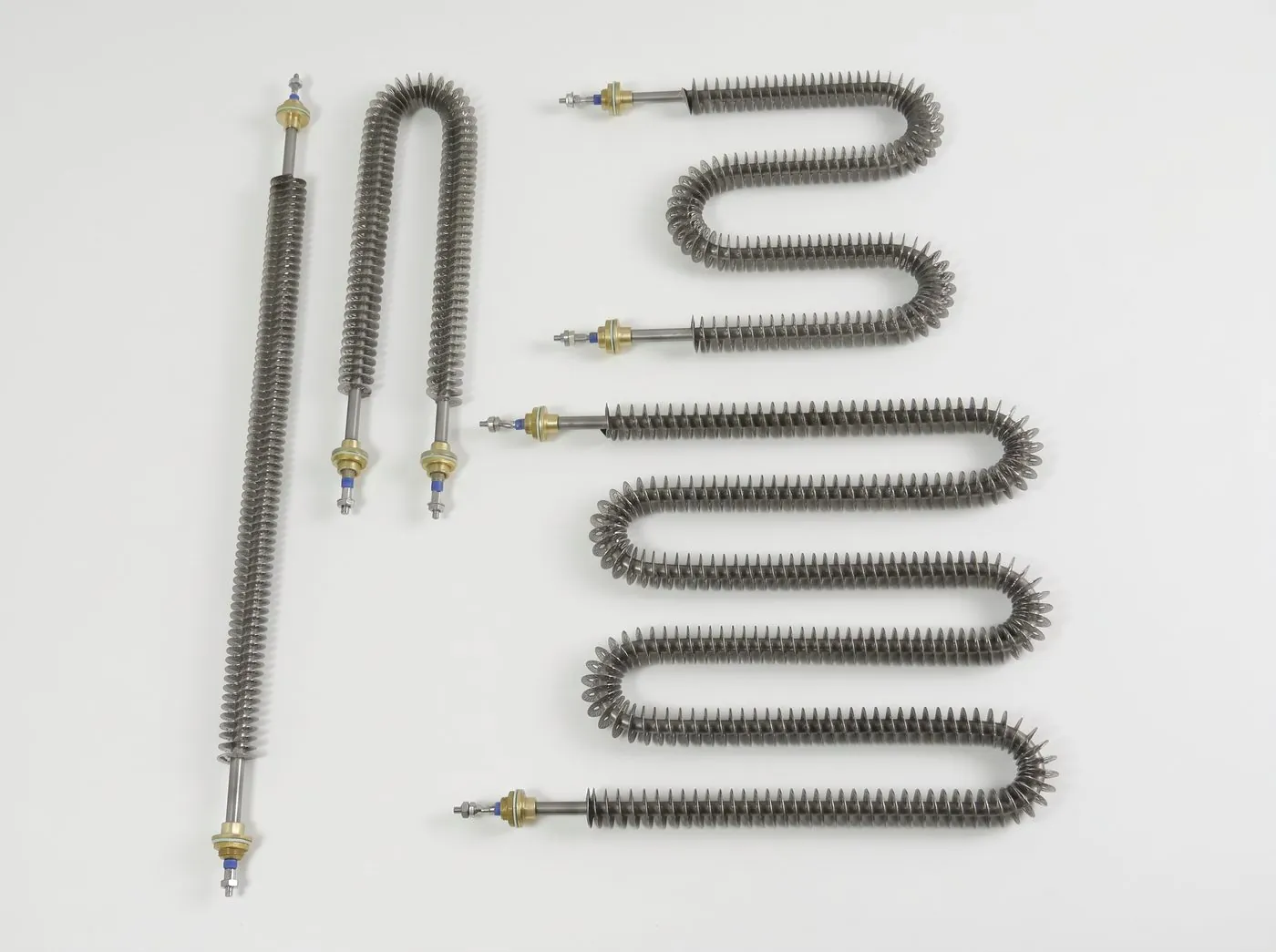

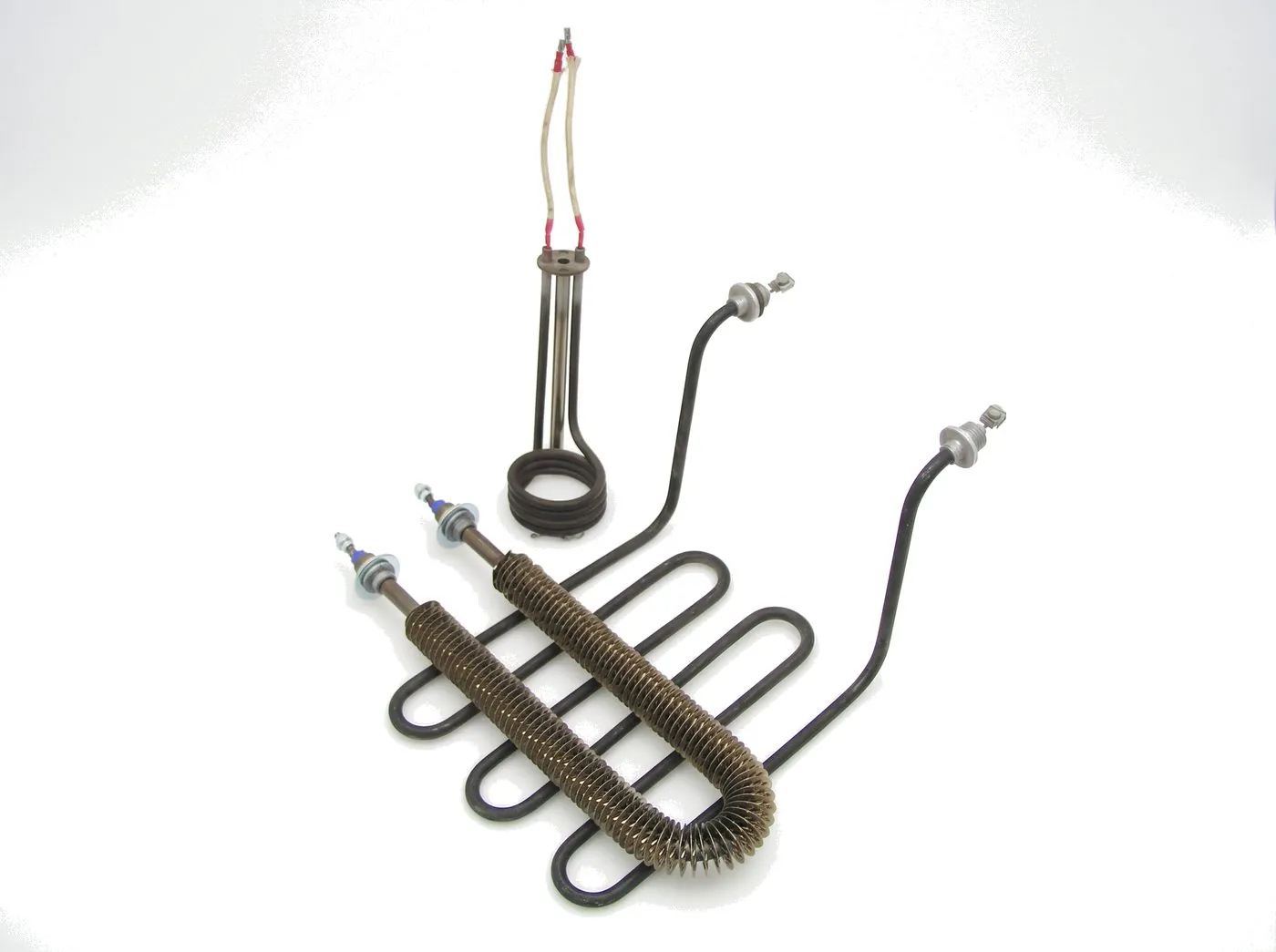

FINBAR™ Elements: Finned construction maximizes air heating efficiency and surface area.
MULTICOIL™ Technology: Multiple coils and internal thermocouples in one sheath for precise temperature control and three-phase capability.
Flexible Mounting & Sealing
Threaded bulkheads, mounting brackets, locator washers, and collars for secure installation.
Moisture-resistant and high-temperature seals.
Quality Assurance
ISO9001 certified
TUBULAR HEATING ELEMENTS
Typical Applications
Immersion and air heating
Ovens, platens, and hot runner molds
Process water, oils, caustic solutions, and air

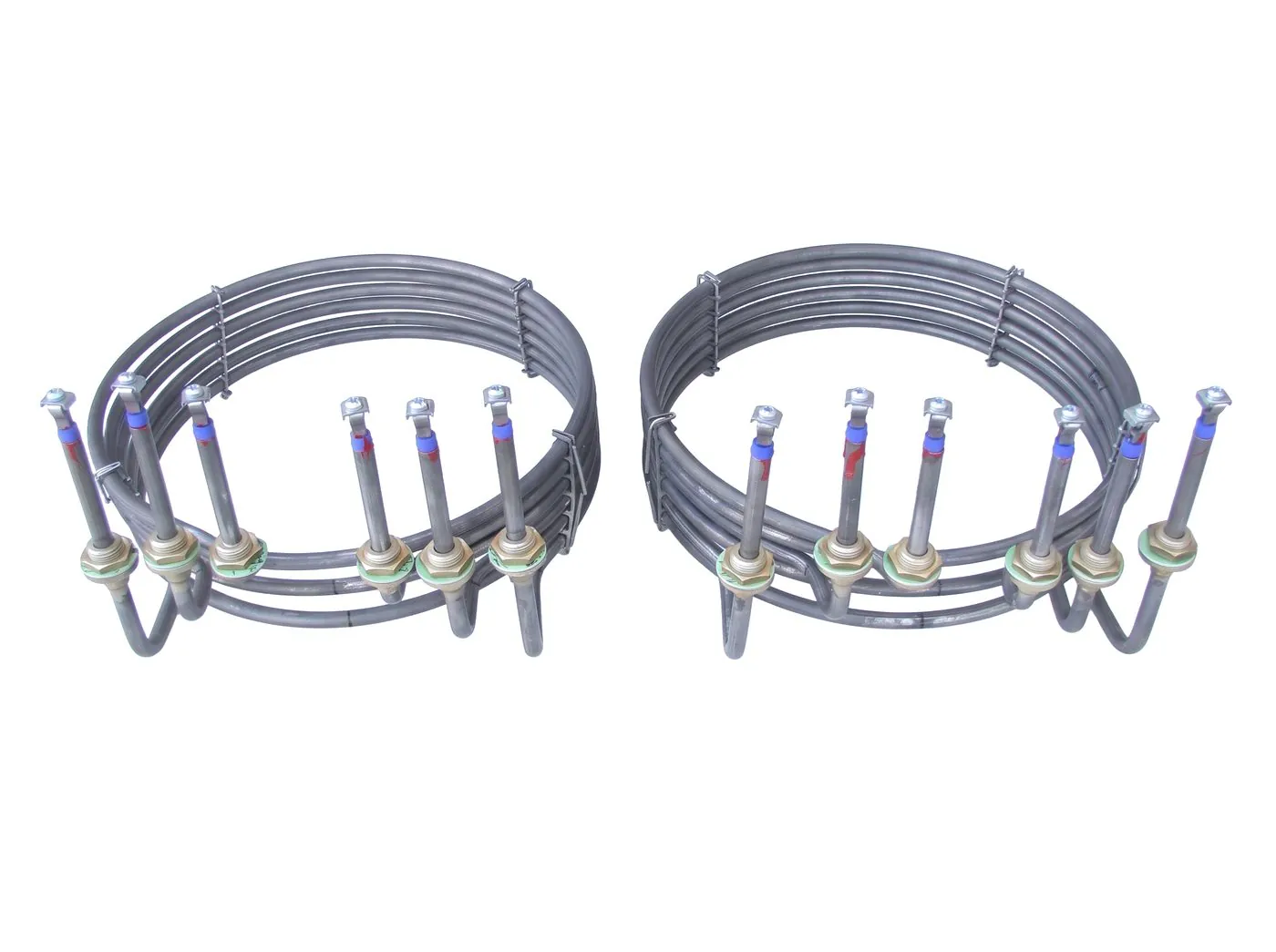

Forced air heating, radiant heating, and environmental systems
Custom solutions for medical, foodservice, plastics, and semiconductor industries
Upgrade your process with Backer Cynebar Ohmic Tubular Heating Elements—engineered in Australia for performance, reliability, and flexibility.
TUBULAR HEATING ELEMENTS
Selecting an industrial or OEM tubular heating element
Tubular elements are made to suit the equipment they heat, so the right choice starts with the application rather than a catalogue number. Use the points below to narrow down a design with our Brisbane team.
What is being heated
Confirm whether the element heats air, water, oil, caustic solution or a surface such as a platen or mould. For forced air, finned FINBAR™ elements add surface area; for immersion, flat FIREBAR® elements help reduce coking.
Sheath material
Choose from Incoloy 800, stainless steel 321, Titanium or Incoloy 825 to suit the medium and operating temperature.
Size and shape
Elements are made in 8mm and 11mm diameters, up to 5m long, with over 80 standard bend formations. A drawing or sample of the existing element helps match OEM replacements.
Power and watt density
Watt densities up to 120 W/in² (18.6 W/cm²) and sheath temperatures up to 700°C are available; the right figure depends on the medium and how heat is removed.
Termination, mounting and control
Select double-ended styles, flexible lead wire or other terminations, plus threaded bulkheads, brackets, locator washers, collars and moisture-resistant or high-temperature seals. MULTICOIL™ designs add internal thermocouples and three-phase capability.
TUBULAR HEATING ELEMENTS
Quotation checklist
Sending these details with your enquiry helps our team quote accurately:
Application and medium being heated (air, water, oil, caustic solution or surface)
Required power (W or kW) and supply voltage, single or three phase
Element diameter (8mm or 11mm) and heated / overall length
Bend shape, with a drawing, photo or sample if replacing an existing element
Preferred sheath material, or the operating temperature and medium so we can recommend one
Termination style, lead length and mounting or sealing requirements
Temperature control needs, such as internal thermocouples
Quantity, and whether this is a one-off replacement or ongoing OEM supply
