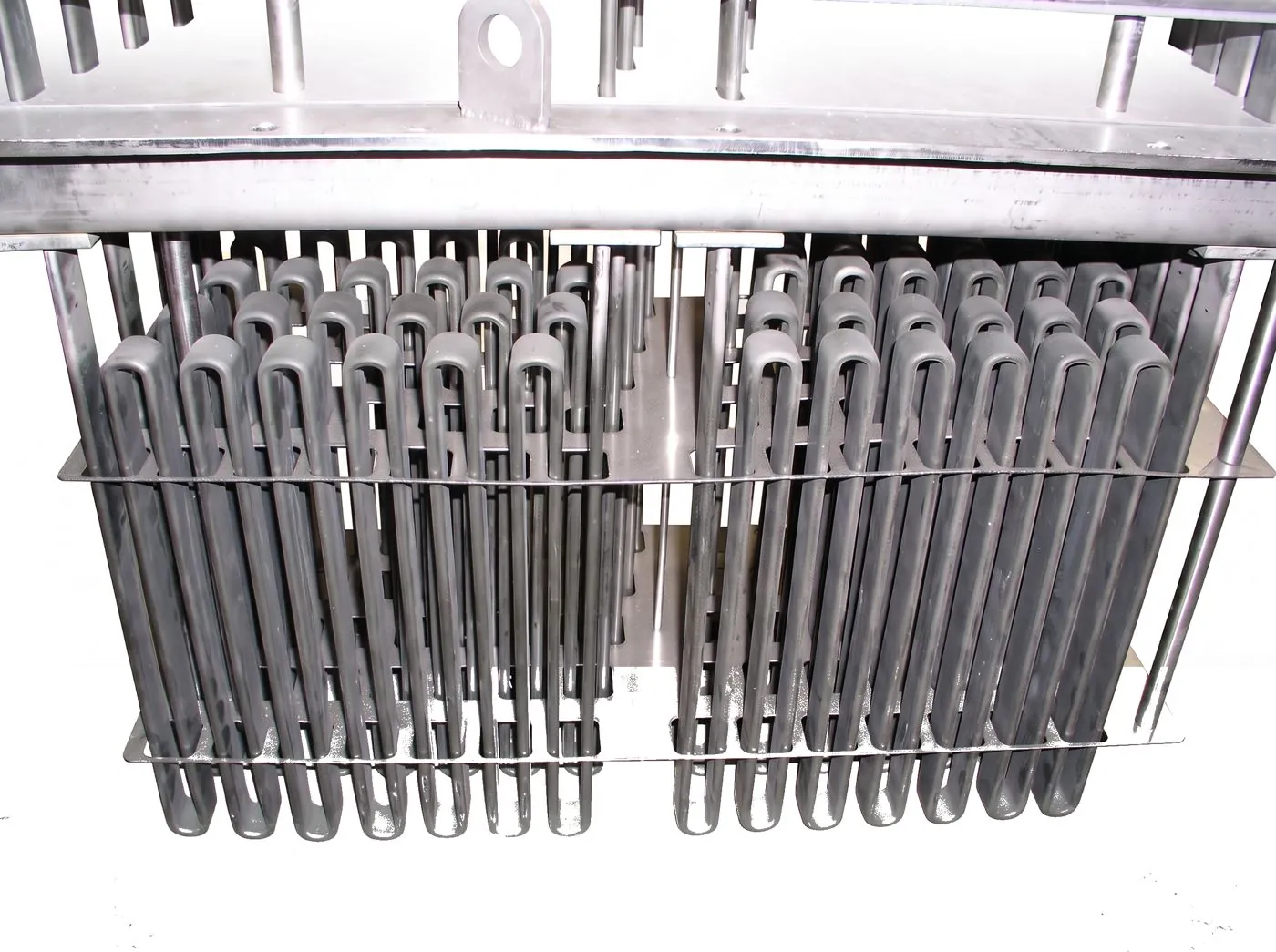

Firebar Elements
When conventional round tubular heating elements reach their limits, Firebar® flat tubular heating elements offer a smarter, more efficient solution. Manufactured and supplied by Backer Cynebar Ohmic, these innovative flat profile heaters deliver higher heat transfer efficiency, lower sheath temperatures, reduced fouling, and longer service life in demanding industrial heating applications. Designed for immersion heating, tank heating, process fluids, oils, water, chemicals, and air heating applications, Firebar® elements provide significantly greater surface area than traditional round tubular heaters while maintaining a compact footprint.
FIREBAR ELEMENTS
Why Choose Firebar® Flat Tubular Elements?
The unique flat profile design improves heat transfer by increasing the surface area available for heat dissipation while reducing the distance heat must travel through the insulation layer. This results in:
- Faster heat-up times
- Lower sheath temperatures
- Reduced fluid degradation
- Less coking and scaling
- Improved energy efficiency
- Longer heater life
- More compact equipment designs
Compared with a conventional round tubular element of equivalent watt density, Firebar® elements can often achieve lower operating sheath temperatures while providing the same heating output.
FIREBAR ELEMENTS
Key Benefits
Increased Surface Area
The flat tubular profile provides approximately 70% greater surface area than a comparable 10.9 mm diameter round tubular element of the same length. This allows:
- Lower watt density
- Higher wattage in the same space
- Improved heat transfer efficiency
- Extended operating life
Faster Heating Performance
The streamlined shape encourages improved fluid flow around the element surface. Reduced turbulence and heat trapping enable more effective heat transfer into the medium being heated.
Reduced Scaling and Coking
The flat profile minimises surface areas where solids can accumulate. Lower sheath temperatures help reduce:
- Carbon build-up
- Fluid degradation
- Lime scale accumulation
- Maintenance requirements
Compact Design
For equivalent wattage and watt density, Firebar® elements can be up to 41% shorter than comparable round tubular heaters. This enables higher power density in space-constrained equipment.
Self-Supporting Construction
The rigid flat construction resists deformation caused by fluid turbulence and vibration, often eliminating the need for additional support brackets.
FIREBAR ELEMENTS
Construction & Materials
Backer Cynebar Ohmic Firebar® elements are manufactured using premium materials designed for industrial reliability:
Heating Coil
- High-grade Nichrome resistance wire
- Precision wound for consistent performance
Insulation
- High-purity compacted magnesium oxide (MgO)
- Excellent thermal conductivity
- High dielectric strength
Sheath Materials
- 304 Stainless Steel
- Incoloy® alloys for higher temperature applications
Electrical Connections
- Fully welded wire-to-pin connections
- High reliability under demanding operating conditions
FIREBAR ELEMENTS
Technical Specifications
- Element Profile: Flat Tubular
- Typical Width: 25.4 mm (1")
- Typical Thickness: 5.9 mm
- Insulation: High Purity MgO
- Heating Wire: Nichrome
- Sheath Materials: 304 SS, Incoloy®
- Construction: Triple Coil Design
- Mounting Options: Brackets, Bulkheads, Threaded Fittings
- Voltage Options: Single Phase & Three Phase
- Termination Styles: Standard or Single-Ended
- Custom Bending: Major & Minor Axis Bending Available
FIREBAR ELEMENTS
Typical Applications
Industrial Process Heating
- Chemical tanks
- Process vessels
- Storage tanks
- Batch reactors
Oil & Viscous Fluids
- Edible oils
- Heat transfer oils
- Lubricants
- Bitumen systems
Water Heating
- Hot water tanks
- Purified water systems
- Wash-down systems
Air Heating
- Industrial ovens
- Drying equipment
- Duct heaters
- Incubators
- Forced air systems
OEM Equipment
- Food processing equipment
- Packaging machinery
- Plastics processing systems
- Manufacturing equipment
FIREBAR ELEMENTS
Flexible Mounting Options
Backer Cynebar Ohmic Firebar® heaters can be supplied with a wide range of mounting configurations including:
- Threaded tank fittings
- Double-leg threaded fittings
- Stainless steel mounting brackets
- Welded liquid-tight flanges
- Single-ended termination designs
Custom formed shapes are also available to suit unique OEM and process requirements.
FIREBAR ELEMENTS
Why Choose Backer Cynebar Ohmic?
Backer Cynebar Ohmic is an Australian manufacturer based in Brisbane, delivering engineered electric heating solutions for industrial customers throughout Australia and internationally.
Our team provides:
- Custom heater design
- Technical application support
- Fast local manufacturing
- OEM heater solutions
- Industrial process heating expertise
- ISO 9001:2015 certified manufacturing
Whether you need a replacement heater or a fully engineered heating system, Backer Cynebar Ohmic can help specify the optimal Firebar® solution for your application.
FIREBAR ELEMENTS
Contact Backer Cynebar Ohmic
Looking for a compact, high-performance heating element for your process?
Backer Cynebar Ohmic supplies custom Firebar® flat tubular heating elements engineered to improve efficiency, reduce maintenance, and extend heater life.
Contact our Brisbane-based engineering team today for sizing assistance, design support, and a competitive quotation.
